Tyre Cavity Microphone (TCM)

The TCM is a remote controlled radio microphone designed to capture the noise inside the tyre’s cavity.

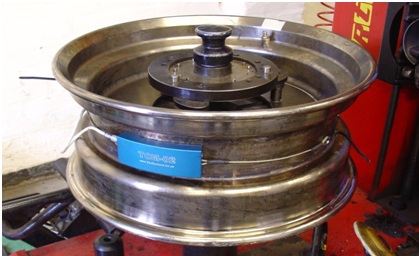

The TCM comprises two small curved aluminium modules.
These are tensioned against the wheel hub by a stainless steel harness and connected by a multi-core cable and antenna.

The TCM will enable engineers to:-

Measure tyre noise accurately
Gather data free from background noise
Develop tyres faster
Select the best tyres for a vehicle
Reduce vehicle interior road noise levels by enabling better road noise route tracking

Read an introductory presentation.
Read the TCM data sheet.
Read the TCA data sheet.
Read the TCT data sheet.

For the Auto Maker

Inexpensive, accurate and convenient way to evaluate tyres
Selection of tyre that minimises the annoying tyre 'singing'
Selection of the best tread noise profile for a given vehicle
Road noise route tracking

For the Tyre Maker

Noise evaluation of the prototype tyres on test wheel without expensive anechoic treatment to test rooms
Coast by noise evaluation without going to the ISO surface
On public road tyre noise testing that is weather and background noise insensitive
